| KOMPERATÖRLER |
|
|
|
|
|
 |
|
 |

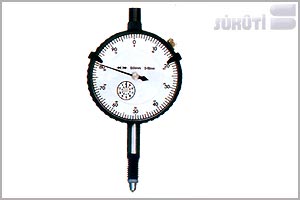

Komperatör Saati
Ölçüm aralığı mm
Kurs boyları 0 - 10 mm'de 0-100 mm kadardır. Hassasiyeti 0,01'dir. Analogdur. |
|

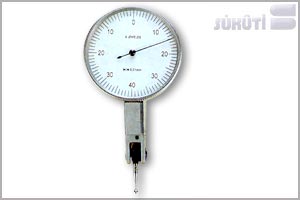

Salgı Komperatörü
Ölçüm aralığı mm 0,8 mm'dir.
Hassasiyeti 0,01'dir. |
|
|
|
 |
|
 |

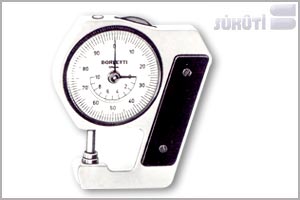

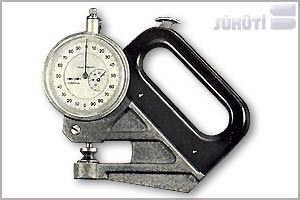

Cep Kalınlık Komperatörü J-45
Ölçüm aralığı mm 0-10 mm'dir.
Boğaz derinliği 20mm'dir
Hassasiyeti 0,01'dir. |
|
Folyo Kalınlığı Ölçüm Komperatörü F-1000/30
Ölçüm aralığı mm 0-1 mm arasıdır.
Boğaz derinliği 20mm'dir.
Hassasiyeti 0,001'dir. |
| |
|
|
 |
|
 |

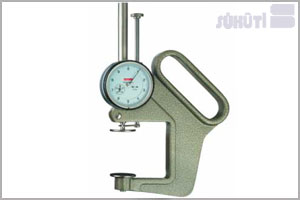

K50/5 Et Kalınlık Ölçer
Ölçüm aralığı mm 0-50mm'dir.
Boğaz derinliği 50mm'dir.
Hassasiyeti 0,1'dir. |
|

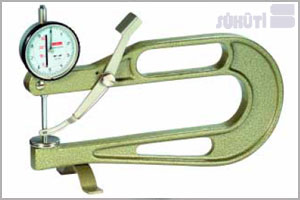

K-300 Et Kalınlık Ölçer
Ölçüm aralığı mm 0-30 mm'dir.
Boğaz derinliği 0-300 mm'dir.
Hassasiyeti 0,1'dir.
|
| |
|
|
 |
|
 |

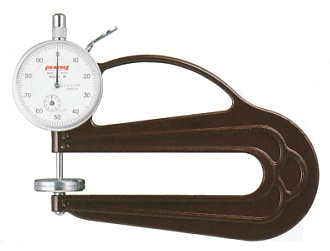

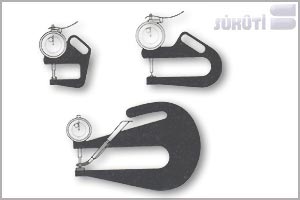

Levha Kalınlığı Ölçüm Komperatörü J-200
| Ölçüm aralığı mm |
Boğaz derinlikleri |
0-10 mm
0-10 mm
0-10 mm |
0-50 mm
0-100 mm
0-200mm |
Hassasiyeti 0,01'dir.
|
|

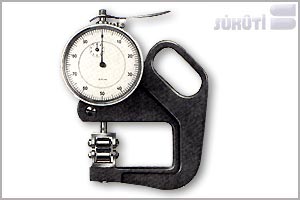

Rulmanlı Komperatör J-50R
Ölçüm aralığı mm 0-5 mm'dir.
Boğaz derinliği 0-50 mm'dir.
Çift makaralıdır. Malzemeyi hareket halinde iken ölçer. Hassasiyeti 0,01'dir. |
| |
|
|

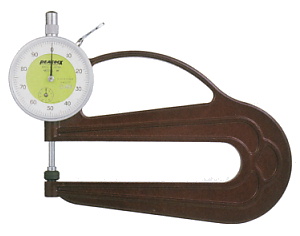

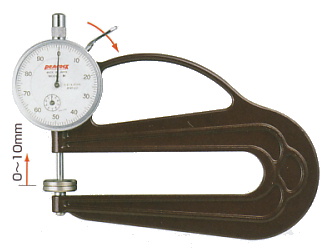

| Applied Dial Thickness
Gauges |
LOW MEASURING FORCE
0.4N
TO MEASURE THICKNESS OF SOFT MATERIAL |
G-0.4N, H-0.4N (Stamped
with 0.4N) |
HIGH MEASURING FORCE 2.4N
TO MEASURE THICKNESS OF HARD MATERIAL |
G-2.4N, H-2.4N (Stamped with
2.4N) |
LARGE DIA CONTACT POINT AND ANVIL
BEST MEASUREMNT OF Urethane
form, common fabric and so on! |
G-20, H-20 (20mm dia ; Flat type)
G-30, H-30 (30mm dia ; Flat type) |
|
| Applied
Dial Thickness Gauges 0.01mm type |
| Model |
G-0.4N |
| Graduation |
0.01mm |
| Range |
0 - 10mm |
Measuring force initial pressure 0.4N
Ø10mm flat contact point and anvil
(ceramic)
|
| Model |
G-2.4N |
| Graduation |
0.01mm |
| Range |
0 - 10mm |
Measuring force final pressure 2.4N
Ø10mm flat contact point and anvil
(ceramic)
 |
| Model |
H-0.4N |
| Graduation |
0.01mm |
| Range |
0 - 10mm |
Measuring force initial pressure
0.4N
Ø10mm flat contact point and anvil (ceramic)
|
| Model |
H-2.4N |
| Graduation |
0.01mm |
| Range |
0 - 10mm |
Measuring force final pressure
2.4N
Ø10mm flat contact point and anvil (ceramic)
 |
| Model |
G-20 |
| Graduation |
0.01mm |
| Range |
0 - 10mm |
Ø20mm flat contact point and anvil
(metal)
 |
| Model |
G-30 |
| Graduation |
0.01mm |
| Range |
0 - 10mm |
Ø30mm flat contact point and anvil
(metal)
|
| Specifications |
| Model |
Graduation
(mm) |
Range
(mm) |
Throat
depth
(mm) |
Accuracy
(µm) |
Contact
Point |
Measuring
force
less than (N) |
| Dia
(mm) |
Parallelism
(µm) |
| G-0.4N |
0.01 |
0
- 10 |
20 |
±20 |
10 |
5 |
Initial
pressure 0.4N |
| G-2.4N |
0.01 |
0
- 10 |
20 |
±20 |
10 |
5 |
Final
pressure 2.4N |
| G-20 |
0.01 |
0
- 10 |
20 |
±20 |
20
(metal) |
15 |
1.8 |
| G-30 |
0.01 |
0
- 10 |
20 |
±20 |
30
(metal) |
20 |
1.8 |
| H-0.4N |
0.01 |
0
- 10 |
120 |
±20 |
10 |
5 |
Initial
pressure 0.4N |
| H-2.4N |
0.01 |
0
- 10 |
120 |
±20 |
10 |
5 |
Final
pressure 2.4N |
| H-20 |
0.01 |
0
- 10 |
120 |
±20 |
20
(metal) |
15 |
1.8 |
| H-30 |
0.01 |
0
- 10 |
120 |
±20 |
30
(metal) |
20 |
1.8 |
| |
|
| |
| Applied
Dial Thickness Gauges |
 LOW
MEASURING FORCE 0.4N
TO MEASURE THICKNESS OF SOFT MATERIAL |
G-0.4N,
H-0.4N (Stamped with 0.4N) |
HIGH
MEASURING FORCE 2.4N
TO MEASURE THICKNESS OF HARD MATERIAL |
G-2.4N,
H-2.4N (Stamped with 2.4N) |
LARGE
DIA CONTACT POINT AND ANVIL
BEST
MEASUREMNT OF Urethane form, common
fabric and so on! |
G-20,
H-20 (20mm dia ; Flat type)
G-30, H-30 (30mm dia ; Flat type) |
|
| Applied
Dial Thickness Gauges 0.01mm type |
| Model |
H-0.4N |
| Graduation |
0.01mm |
| Range |
0
- 10mm |
Measuring
force initial pressure 0.4N
Ø10mm flat contact point and anvil
(ceramic)
|
| Model |
H-2.4N |
| Graduation |
0.01mm |
| Range |
0
- 10mm |
Measuring
force final pressure 2.4N
Ø10mm flat contact point and anvil
(ceramic)
|
| Model |
H-20 |
| Graduation |
0.01mm |
| Range |
0
- 10mm |
Ø20mm
flat contact point and anvil (metal)
 |
| Model |
H-30 |
| Graduation |
0.01mm |
| Range |
0
- 10mm |
Ø30mm
flat contact point and anvil (metal)
 |
††††
| Specifications |
| Model |
Graduation
(mm) |
Range
(mm) |
Throat
depth
(mm) |
Accuracy
(µm) |
Contact
Point |
Measuring
force
less than (N) |
| Dia
(mm) |
Parallelism
(µm) |
| G-0.4N |
0.01 |
0
- 10 |
20 |
±20 |
10 |
5 |
Initial
pressure 0.4N |
| G-2.4N |
0.01 |
0
- 10 |
20 |
±20 |
10 |
5 |
Final
pressure 2.4N |
| G-20 |
0.01 |
0
- 10 |
20 |
±20 |
20
(metal) |
15 |
1.8 |
| G-30 |
0.01 |
0
- 10 |
20 |
±20 |
30
(metal) |
20 |
1.8 |
| H-0.4N |
0.01 |
0
- 10 |
120 |
±20 |
10 |
5 |
Initial
pressure 0.4N |
| H-2.4N |
0.01 |
0
- 10 |
120 |
±20 |
10 |
5 |
Final
pressure 2.4N |
| H-20 |
0.01 |
0
- 10 |
120 |
±20 |
20
(metal) |
15 |
1.8 |
| H-30 |
0.01 |
0
- 10 |
120 |
±20 |
30
(metal) |
20 |
1.8 |
| |
|
|
|
